| 力士乐叠加阀停产型号 |
| 点击次数：1393 更新时间：2016-08-24 |
|

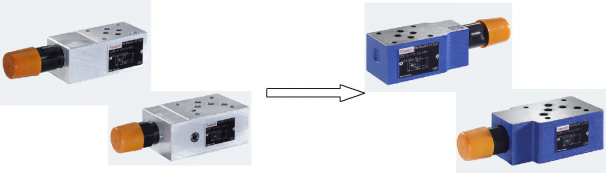

力士乐叠加阀停产型号 力士乐叠加阀以及所使用的插装阀芯 DB…SO50，不再接受新的生产 订单。改由灰铸铁材质的标准产品替换，标准产品具有相同的功能，更高的压力和流量。  | | 淘汰产品 | | | 替换产品 | | | | | | | | | 旧型号 | 旧系列号 | 样本 | 新型号 | 新系列号 | 样本 | | | | | | | | Z(2)DBK6 | 1X | 25754 | Z(2)DB6V | 4X | 25751 | | | | | | | | Z(2)DBK10 | 1X | 25764 | Z(2)DB10V | 4X | 25761 | | | | | | | | Z2FSK6 | 1X | 27510 | Z2FS6 | 4X | 27506 | | | | | | | | Z2FSK10 | 1X | 27524 | Z2FS10 | 3X | 27518 | | | | | | | | Z2SRK6 | 1X | 21543 | Z2S6 | 6X | 21548 | | | | | | | | Z2SRK10 | 1X | 21549 | Z2S10 | 3X | 21553 | | | | | | | |
 淘汰时间 • | 物料状态“淘汰 AL“: | 21.03.2014 | • | 停止生产: | 31.03.2015 |
产品替换清单 Z(2)DBK6 物料号 | 型号 | 替换型号 | 物料号 | | | | | | R900564562 | ZDBK 6 VP2-1X/50V | ZDB 6 VP2-4X/50V SO55 | R901388645 | R900564564 | ZDBK 6 VP2-1X/210V | ZDB 6 VP2-4X/315V SO55 | R901388684 | R900921277 | ZDBK 6 VP2-1X/210P105V | ZDB 6 VP2-4X/160P105V SO55 | R901388644 | R900970814 | ZDBK 6 VP2-1X/210-180V | ZDB 6 VP2-4X/200-180V SO55 | R901388643 | R900913553 | ZDBK 6 VP2-1X/210-175V | ZDB 6 VP2-4X/200-175V SO55 | R901388641 | R901344196 | ZDBK 6 VP2-1X/210-140V | ZDB 6 VP2-4X/160-140V SO55 | R901388618 | R900564563 | ZDBK 6 VP2-1X/100V | ZDB 6 VP2-4X/100V SO55 | R901388613 | R900911789 | ZDBK 6 VP2-1X/100P100V | ZDB 6 VP2-4X/100P100V SO55 | R901388612 | R901261191 | ZDBK 6 VP2-1X/100-70V | ZDB 6 VP2-4X/100-70V SO55 | R901388609 | R900564559 | ZDBK 6 VB2-1X/50V | ZDB 6 VB2-4X/50V | R900422214 | R900564561 | ZDBK 6 VB2-1X/210V | ZDB 6 VB2-4X/315V | R900409896 | R900908037 | ZDBK 6 VB2-1X/210-140V | ZDB 6 VB2-4X/200-140V | via MANF | R900564560 | ZDBK 6 VB2-1X/100V | ZDB 6 VB2-4X/100V | R900409936 | R901181847 | ZDBK 6 VB2-1X/100-80V | ZDB 6 VB2-4X/100-80V | via MANF | R900564557 | ZDBK 6 VA2-1X/50V | ZDB 6 VA2-4X/50V | R900406615 | R900564558 | ZDBK 6 VA2-1X/210V | ZDB 6 VA2-4X/315V | R900409893 | R900501402 | ZDBK 6 VA2-1X/100V | ZDB 6 VA2-4X/100V | R900409889 | R900565002 | Z2DBK 6 VD2-1X/50V | Z2DB 6 VD2-4X/50V | R900421937 | R900564570 | Z2DBK 6 VD2-1X/210V | Z2DB 6 VD2-4X/315V | R900411357 | R900939754 | Z2DBK 6 VD2-1X/210P120V | Z2DB 6 VD2-4X/200P120V | via MANF | R900565003 | Z2DBK 6 VD2-1X/100V | Z2DB 6 VD2-4X/100V | R900411317 | R900565005 | Z2DBK 6 VC2-1X/50V | Z2DB 6 VC2-4X/50V | R900481501 | R901117309 | Z2DBK 6 VC2-1X/210V=TE | Z2DB 6 VC2-4X/315V=TE | via MANF | R900565007 | Z2DBK 6 VC2-1X/210V | Z2DB 6 VC2-4X/315V | R900411318 | R900565006 | Z2DBK 6 VC2-1X/100V | Z2DB 6 VC2-4X/100V | R900411315 |
Z(2)DBK10 物料号 | 型号 | 替换型号 | 物料号 | | | | | | R900564524 | ZDBK 10 VA2-1X/100V | ZDB 10 VA2-4X/100V | R900424537 | R900564525 | ZDBK 10 VA2-1X/210V | ZDB 10 VA2-4X/315V | R900409955 | R900564523 | ZDBK 10 VA2-1X/50V | ZDB 10 VA2-4X/50V | R900423244 | R900564527 | ZDBK 10 VB2-1X/100V | ZDB 10 VB2-4X/100V | R900409951 | R900564528 | ZDBK 10 VB2-1X/210V | ZDB 10 VB2-4X/315V | R900409956 | R900564526 | ZDBK 10 VB2-1X/50V | ZDB 10 VB2-4X/50V | R900425723 | R900501052 | ZDBK 10 VP2-1X/100V | ZDB 10 VP2-4X/100V | R900409959 | R900564530 | ZDBK 10 VP2-1X/210V | ZDB 10 VP2-4X/315V | R900409958 | R900564529 | ZDBK 10 VP2-1X/50V | ZDB 10 VP2-4X/50V | R900422752 | R900564532 | Z2DBK 10 VC2-1X/100V | Z2DB 10 VC2-4X/100V | R900425700 | R900564533 | Z2DBK 10 VC2-1X/210V | Z2DB 10 VC2-4X/315V | R900411430 | R900564531 | Z2DBK 10 VC2-1X/50V | Z2DB 10 VC2-4X/50V | R900441974 | R900564535 | Z2DBK 10 VD2-1X/100V | Z2DB 10 VD2-4X/100V | R900411413 | R900564536 | Z2DBK 10 VD2-1X/210V | Z2DB 10 VD2-4X/315V | R900411462 | R900564534 | Z2DBK 10 VD2-1X/50V | Z2DB 10 VD2-4X/50V | R900479846 |
Z2FSK6 和 10 物料号 | 型号 | 替换型号 | 物料号 | | | | | | R901184375 | Z2FSK 6-2-1X/2Q | Z2FS 6-2-4X/2Q | R900481622 | R900564521 | Z2FSK 6-2-1X/2QV | Z2FS 6-2-4X/2QV | R900481624 | R900903461 | Z2FSK 6-5-1X/2QV | Z2FS | 6-5-4X/2QV | R900476838 | R900564522 | Z2FSK 10-2-1X/2QV | Z2FS | 10-5-3X/V | R900517812 |
Z2SRK6 和 10 物料号 | 型号 | 替换型号 | 物料号 | | | | | | R900564519 | Z2SRK 6-1-1X/V/60 | Z2S6-1-6X/V/60 | R901374869 | R901117787 | Z2SRK 6-1-1X/V/60=TE | Z2S6-1-6X/V/60=TE | via MANF | R901342144 | Z2SRK 6-1-1X/V/62 | Z2S6-1-6X/V/62 | R900747681 | R987012479 | Z2SRK6A-1-1X/V | Z2S6A1-6X/V | R900347507 | R978897935 | Z2SRK6A1-1X/V | Z2S6A1-6X/V | R900347507 | R978893392 | Z2SRK6B1-1X/V | Z2S6B1-6X/V | R900347510 | R900564520 | Z2SRK 10-1-1X/V | Z2S 10-1-3X/V | R900407439 |
新老产品的油口连接位置均符合 ISO4401 标准，但铝质阀默认带定位孔，对应铸铁材质产品订货代码 “/60”（铸铁材质阀默认不带定位孔）。以上提供了具体的产品替换清单，但所列铸铁产品一般不带定位 孔，所以替换时需跟客户沟通调整，也可以根据样本选带定位孔的产品。 参数比较 重量 [kg] (ca.) | | Aluminum Valve | Cast Iron Valve | ZDBK6 | 0,6 | 1 | Z2DBK6VC | 0,8 | 1,2 | Z2DBK6VD | 1,4 | 1,2 | ZDBK10 | 1,3 | 2,4 | Z2DBK10VC | 1,5 | 2,6 | Z2DBK10VD | 2,7 | 2,6 | Z2FS6 | 0,5 | 0,8 | Z2FS10 | 1,2 | 3,1 | Z2SRK6 | 0,5 | 0,8 | Z2SRK10 | 3,2 | 3 |
ZDBK6V à ZDB6V | | | | old | new | length [mm] | VP | 160 | 155 | | | | VA | 148 | 163,5 | | | | VB | 147 | 155 | | | | VC | 230 | 227 | | | | VD | 195 | 227 | width [mm] | | 46,5 | 46,5 | height | [mm] | | 40 | 40 | adjustment | | side A | side A (only at VP Type: | | | | | | SO 55) | ZDBK10V à ZDB10V | | | | | | | | old | new | length [mm] | VP | 172 | 168 | | | | VA | 172 | 168 | | | | VB | 172 | 168 | | | | VC | 253 | 228 | | | | VD | 199 | 230 | width [mm] | | 72 | 72 | height [mm] | | 50 | 50 | adjustment | | side A | side A | Z2FSK6 à Z2FS6 | | | | | | | | old | new | length [mm] | | 160 | 171 | width [mm] | | 44 | 45 | height | [mm] | | 40 | 40 | adjustment | | -- | -- | Z2FSK10 à Z2FS10 | | | | | | | | old | new | length [mm] | | 171 | 184 | width [mm] | | 72 | 72 | height | [mm] | | 50 | 50 | adjustment | | -- | -- | Z2SRK6 à Z2S6 | | | | | | | | old | new | length [mm] | | 96 | 102 | width [mm] | | 46,5 | 46,5 | height | [mm] | | 40 | 40 | adjustment | | -- | -- | Z2SRK10 à Z2S10 | | | | | | | | old | new | length [mm] | | 112 | 159 | width [mm] | | 71,5 | 71,5 | height | [mm] | | 50 | 50 | adjustment | | -- | -- |
|
| |
|
|
|
